Energy meters

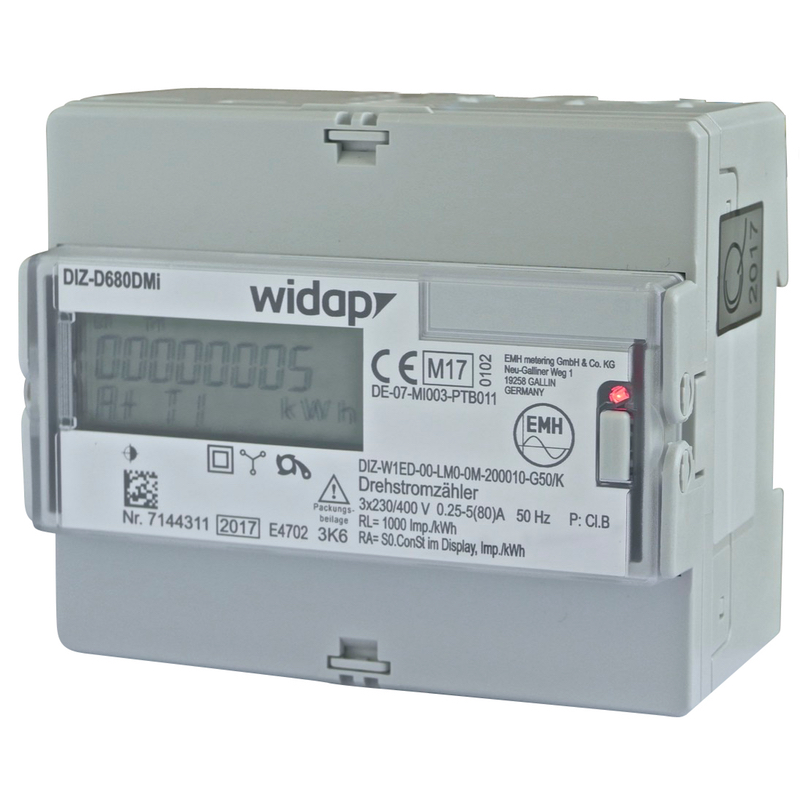

DIZ kWh Meter
The DIZ latest generation with up to 80A direct measurement and 1A or 5A via current transformer. New with M-bus and Modbus. Variants with active-reactive energy and 2 directional measurement.
The direct-measuring configuration of DIZ is prepared for the connection to 3 or 4-phase fork rails. The energy consumption values can be provided as a pulse output and/or via an electrical interface as M-bus (according to EN 13757-2,-3) or Modbus.
The direct-measuring configuration of DIZ is prepared for the connection to 3 or 4-phase fork rails. The energy consumption values can be provided as a pulse output and/or via an electrical interface as M-bus (according to EN 13757-2,-3) or Modbus.

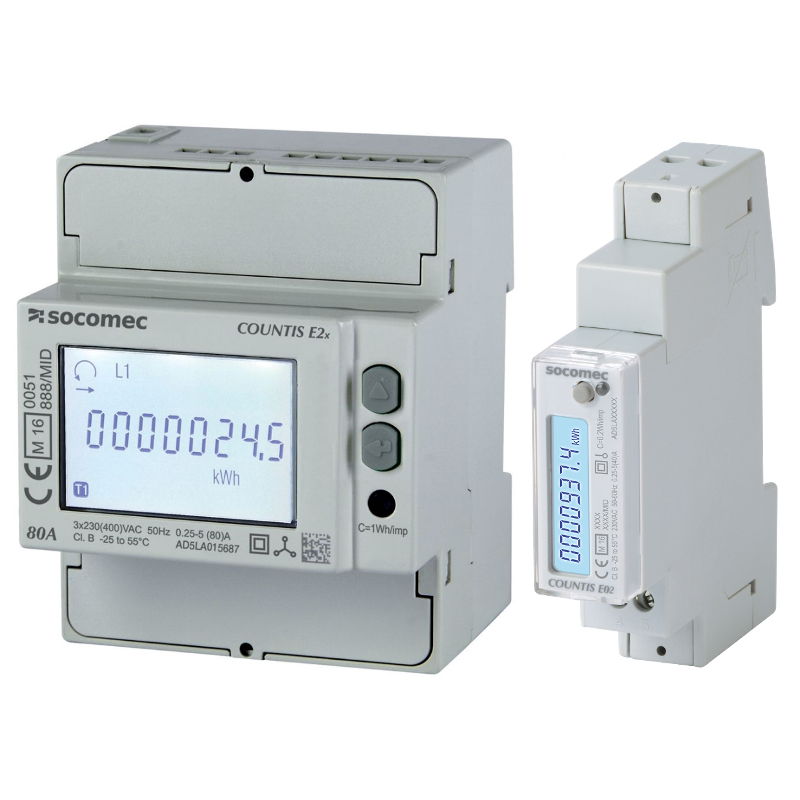

COUNTIS Energy Meters
The low-price energy meter for measuring kWh and kVarh. With double tariff and bidirectional measurement.
- For 1- or 3-phase measurements
- MID certified according to module B+D and therefore approved for clearing
- Accuracy active energy class 1 according to IEC 62053-21
- Accuracy active energy class B according to EN 50470
- With pulse, Modbus or M-Bus output
- Direct measuring up to 80 A, indirectly measuring over current transformers up to 12'000 A
KIZ kWh Meter
The KIZ is a meter for measuring positive active energy. It is available in single or double tariff configuration.
Its compact design enables a space-saving assembly (only 4 TE wide). The meter is equipped with a 7-digit LC display. The energy consumption values can be issued via a pulse output and/or via an electrical interface (M-bus according to EN 13757-2,-3).
Its compact design enables a space-saving assembly (only 4 TE wide). The meter is equipped with a 7-digit LC display. The energy consumption values can be issued via a pulse output and/or via an electrical interface (M-bus according to EN 13757-2,-3).

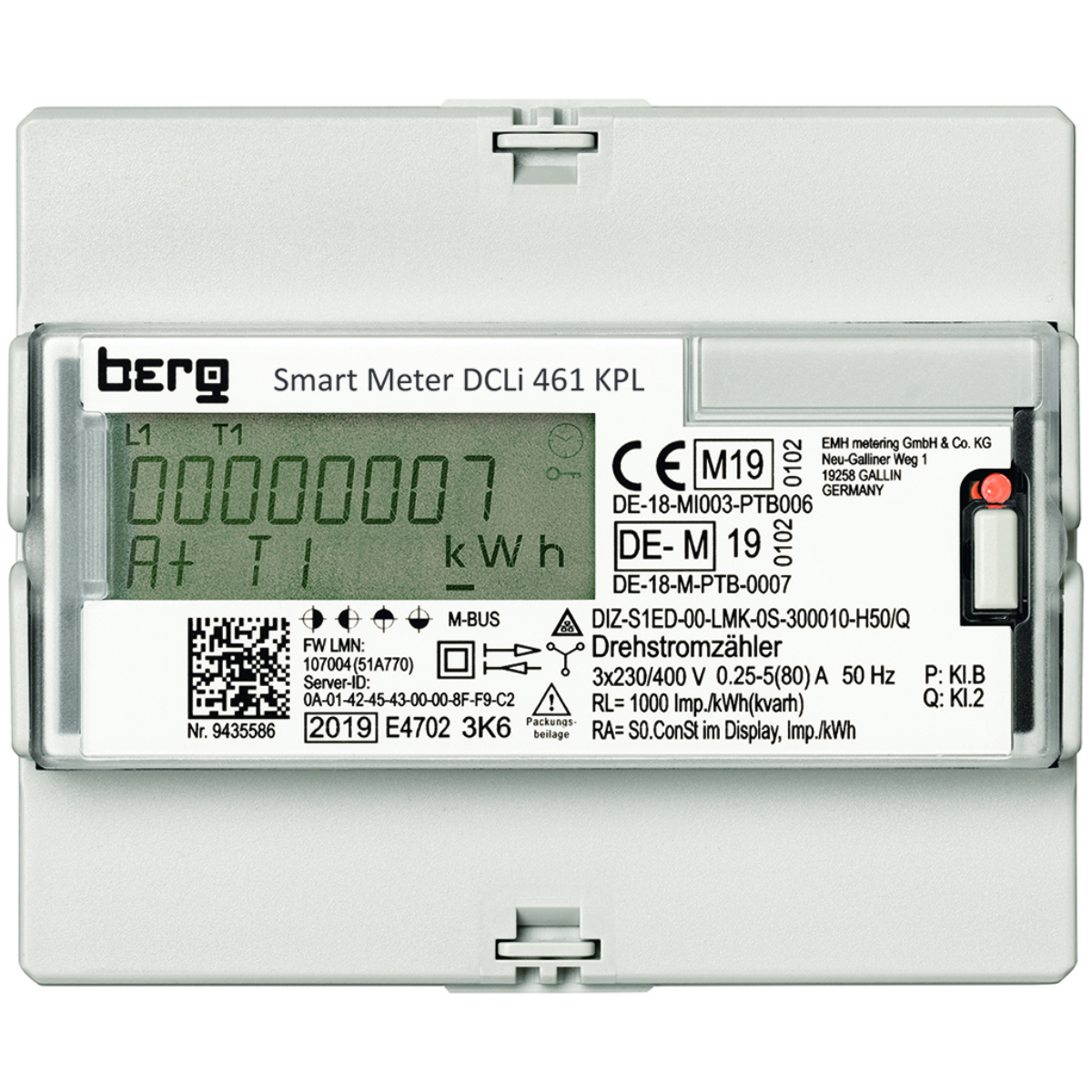

Energy meter DCI – DCMI – DCMOI
The electronic energy consumption meter with M-Bus or Modbus RTU interface for DIN rail mounting. Suitable for measurements up to 80A direct or 1(6)A transformer with MID approval. Universal use thanks to various versions (2-, 3- or 4-wire networks). The digital energy meter of the DCI series can be integrated into almost all energy management systems, whether with S0 pulse output or M-BUS or Modbus RTU protocol. With up to 80A, even large system sizes can now be measured directly. Available as a converter variant for both 1A and 6A.

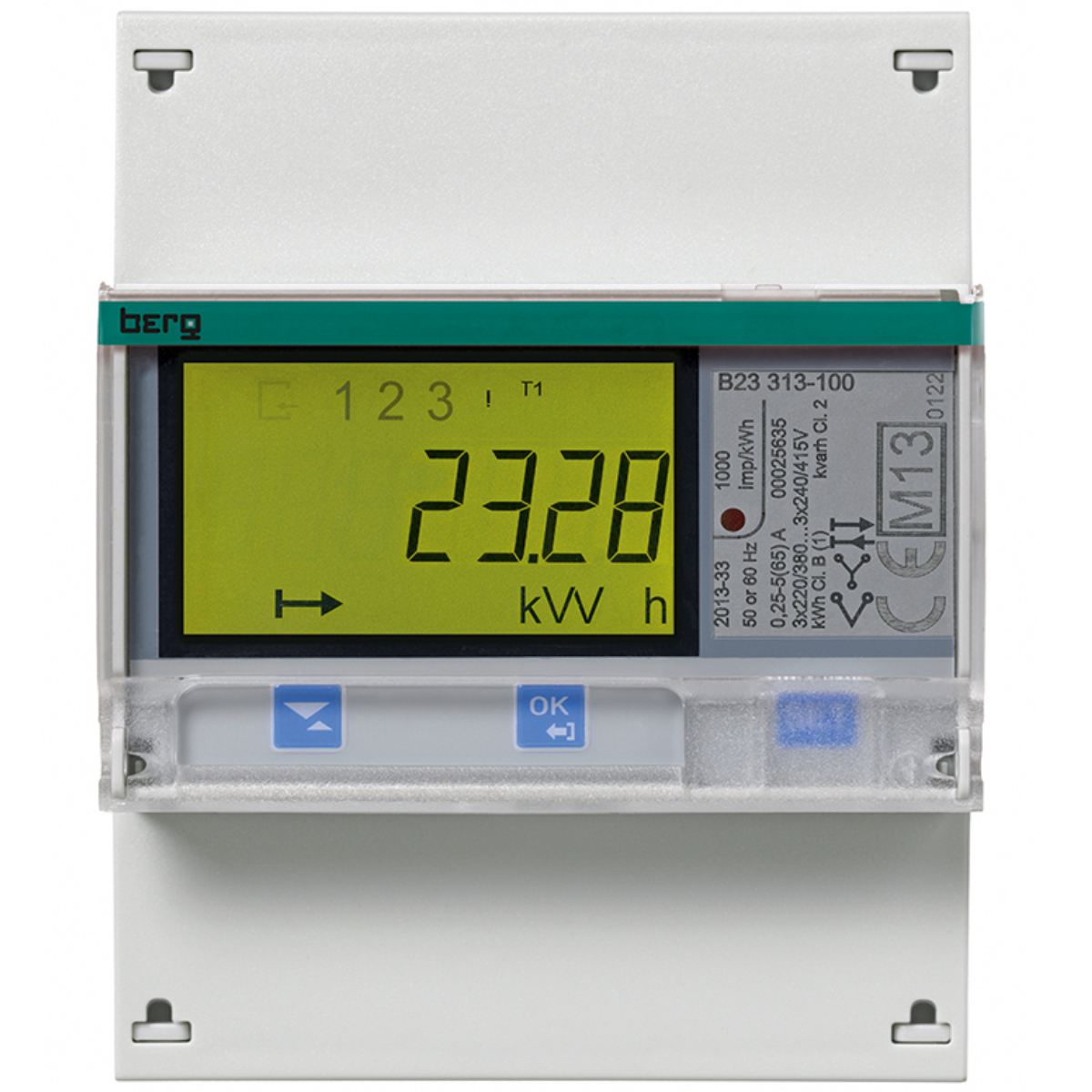

Energy meter B23/B24
The B meter series is the new generation of MID-approved energy meters for measurements in industrial plants. With a width of 4 HP, it can be mounted on a top-hat rail. It is available in a direct measuring version for measurements up to 65A and as a transformer version for larger measuring currents. Equipped with 4 tariffs as standard, the calibrated digital electricity meter of the B meter series also has 2 additional inputs and outputs for pulses or alarms. Due to their high accuracy, the B meters are ideal for use in energy management solutions.
MIZ kWh Meter
The meters of the series MIZ serve as devices for the measurement of positive active energy. They are designed for DIN-rail mounting and are only 18 mm wide (1TE).
The meters are equipped with a 6-digit LC display. The MIZ is available in 3 versions – silver, gold and premium.
The meters are equipped with a 6-digit LC display. The MIZ is available in 3 versions – silver, gold and premium.
